Modern manufacturing increasingly depends on components that are smaller, lighter, and more precise than ever before. From medical devices and electronic systems to automotive sensors and miniature mechanical assemblies, many industries require parts with extremely tight tolerances and intricate geometries. Producing these tiny components efficiently can be challenging because conventional manufacturing methods may struggle with very small dimensions, complex shapes, and demanding material requirements. This is where Micro Injection Molding provides an effective manufacturing solution.
Micro Injection Molding is a specialized manufacturing process designed to produce extremely small plastic components with high levels of accuracy and repeatability. By combining precision tooling, specialized injection equipment, carefully selected materials, and controlled processing conditions, manufacturers can create miniature parts that meet demanding dimensional and functional requirements.
Understanding Micro Injection Molding
Micro Injection Molding is an advanced variation of traditional injection molding. While conventional injection molding is commonly used for producing larger plastic components, this specialized process focuses on parts that may weigh only a fraction of a gram and contain extremely small features.
The process begins with thermoplastic material being heated until it reaches a suitable molten state. The material is then injected into a precision mold cavity under carefully controlled pressure and speed. Once the material fills the cavity, it cools and solidifies before the finished component is ejected.
The process may appear similar to conventional injection molding, but manufacturing at a miniature scale introduces additional challenges. Small variations in temperature, pressure, material flow, or mold design can significantly affect the final component. As a result, specialized equipment and detailed process control are essential.
Why Tiny Components Require Exceptional Precision
Producing miniature components requires much more than simply reducing the size of a conventional part. Features that are easy to manufacture on a larger component can become extremely difficult when scaled down.
For example, microscopic holes, thin walls, miniature gears, narrow channels, and intricate surface details require molds with exceptional dimensional accuracy. Even a small amount of material variation or thermal shrinkage can affect whether a tiny component meets its required specifications.
Micro Injection Molding addresses these challenges through highly engineered molds and carefully controlled processing conditions. Manufacturers can optimize injection speed, pressure, temperature, cooling, and material flow to produce consistent results.
Precision Tooling Makes Miniature Production Possible
One of the most important elements of Micro Injection Molding is the quality of the mold. Since the final component may contain extremely small features, the mold must reproduce those features with exceptional accuracy.

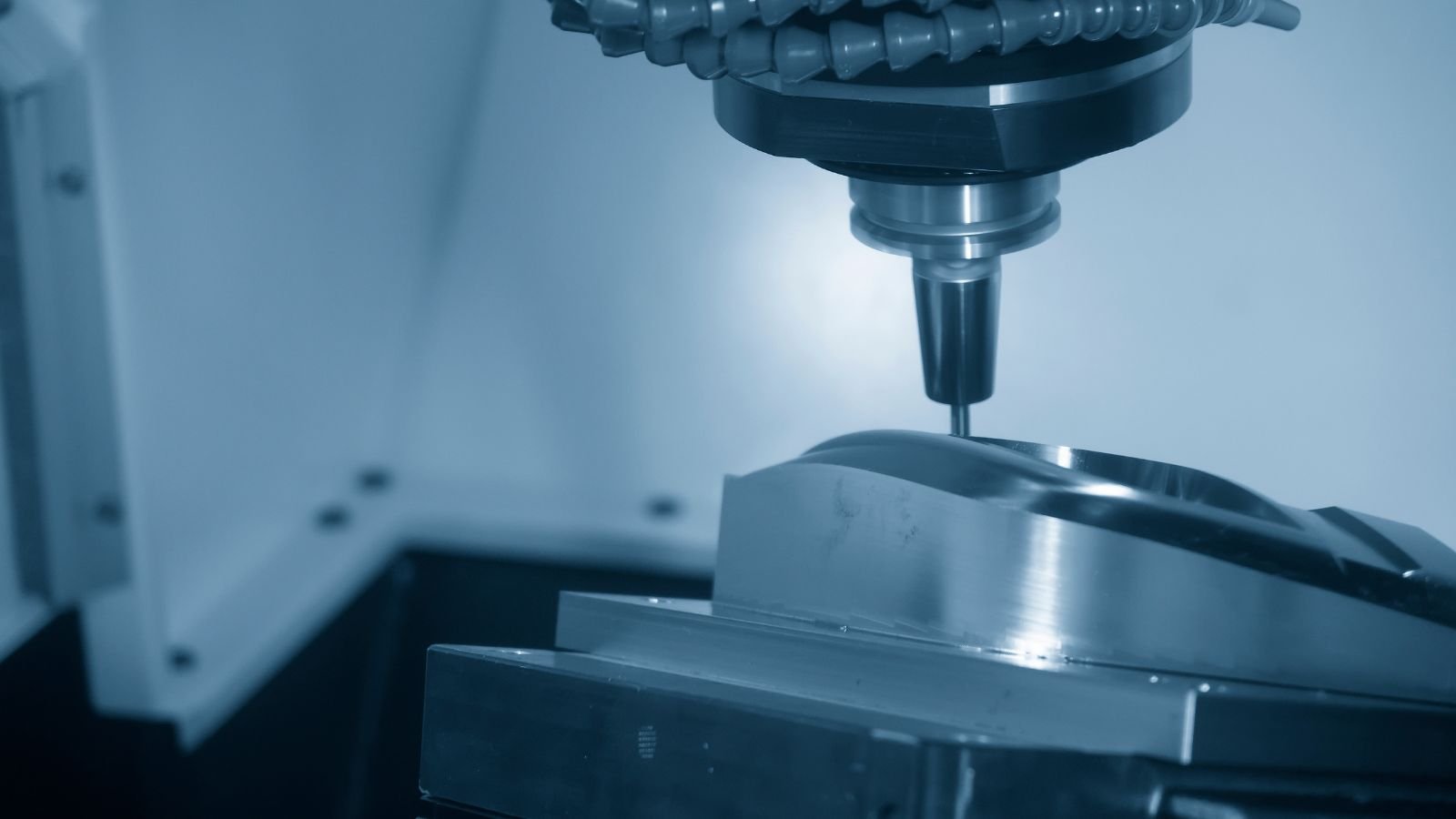

Precision machining, micro-milling, electrical discharge machining, laser processing, and other advanced tooling techniques may be used to manufacture miniature mold cavities. Mold surfaces must be carefully finished to ensure that small features are accurately transferred to the molded component.
Tool design also considers factors such as material flow, cooling behavior, shrinkage, part ejection, and venting. Proper mold engineering reduces defects and helps maintain consistent dimensions throughout production.
Advanced Material Selection
Material selection is another critical factor in miniature component manufacturing. Different applications require different combinations of strength, flexibility, chemical resistance, temperature resistance, electrical properties, and dimensional stability.
Engineering thermoplastics can be selected when components need to withstand demanding operating environments. Other materials may be preferred for applications requiring low friction, wear resistance, transparency, or biocompatibility.
At miniature scales, material behavior can differ from what manufacturers observe with larger molded components. Flow characteristics, cooling rates, shrinkage, and viscosity all influence how successfully a material fills a tiny cavity. Therefore, material selection and process development must be considered together.
Applications Across Multiple Industries
The ability to manufacture highly detailed miniature components has expanded the use of Micro Injection Molding across many industries.
Medical and Healthcare Devices
Medical technology is one of the major areas where miniature molded components are valuable. Devices may contain small connectors, valves, housings, gears, handles, and other precision parts.
Micro-molded components can support the development of compact diagnostic equipment, minimally invasive instruments, drug-delivery systems, and other medical technologies. In many applications, dimensional accuracy is particularly important because components may interact with other miniature parts or fluids.
Electronics and Consumer Technology
Electronic devices continue to become smaller while incorporating increasingly sophisticated functionality. This creates demand for miniature plastic components used in connectors, switches, sensors, housings, and other assemblies.
Micro Injection Molding allows manufacturers to create detailed components that occupy minimal space. High repeatability is also valuable when producing large quantities of identical electronic parts.
Automotive and Sensor Applications
Modern vehicles contain numerous sensors and electronic systems that require compact components. Miniature molded parts can be used in sensor housings, connectors, actuators, and other precision assemblies.
These components may need to withstand vibration, temperature changes, chemicals, and long operating periods. Selecting an appropriate engineering material and maintaining consistent molding conditions can help manufacturers meet these requirements.
Optical and Microfluidic Systems
Miniature components are also important in optical equipment and microfluidic technologies. These applications may require extremely small channels, lenses, structural features, or fluid-handling components.
The ability to reproduce fine geometries consistently makes precision molding useful for applications where dimensional accuracy directly affects system performance.
Benefits of Micro Injection Molding
One major advantage is the ability to produce complex miniature components in high volumes. Once the tooling and process have been properly developed, manufacturers can produce large quantities with consistent dimensions.
The process can also reduce material waste compared with subtractive manufacturing methods. Instead of machining a component from a larger piece of material, injection molding forms the part directly within the mold cavity.
Another benefit is design flexibility. Engineers can incorporate small details, complex geometries, and integrated features into a single molded component. This can reduce the number of separate parts required in an assembly.
Repeatability is equally important. Automated equipment and tightly controlled molding parameters can help manufacturers maintain consistent quality across production runs.
Maintaining Quality at a Microscopic Scale
Quality control becomes particularly important when components are extremely small. Conventional inspection techniques may not provide sufficient resolution for measuring miniature features accurately.
Manufacturers may use optical measurement systems, high-resolution imaging, coordinate measurement equipment, and other specialized inspection technologies. These systems can verify dimensions, surface quality, geometry, and other critical characteristics.
Process monitoring is also essential. Tracking injection pressure, temperature, cycle time, and other parameters can help identify variations before they result in large quantities of defective parts.
The Importance of Design for Manufacturing
Successful miniature molding begins during product design. Engineers need to consider moldability before finalizing the component geometry.
Wall thickness, draft angles, gate locations, parting lines, ejection features, and material flow should all be evaluated during development. Features that are technically possible may still be difficult or expensive to manufacture if they are not designed appropriately.
Simulation software can help manufacturers analyze material flow and identify potential problems before creating production tooling. Early collaboration between designers, mold engineers, and manufacturing specialists can therefore reduce development time and improve overall production efficiency.
Future Potential of Micro Injection Molding
Demand for miniature components is expected to remain important as products continue to become smaller, smarter, and more integrated. Advances in medical technology, electronics, automation, sensors, and microfluidic systems are creating new opportunities for precision manufacturing.
Improvements in mold-making technologies, injection equipment, automation, material development, and inspection systems are helping manufacturers achieve increasingly sophisticated results. As these technologies advance, manufacturers can explore smaller features and more complex component designs.
Conclusion
Micro Injection Molding enables manufacturers to produce extremely small plastic components while maintaining the precision, consistency, and complexity required by modern products. Through specialized tooling, carefully selected materials, controlled processing, and advanced inspection methods, the process can meet demanding miniature manufacturing requirements.
From medical instruments and electronics to automotive sensors and optical systems, tiny components play an increasingly important role in modern technology. As product designs continue moving toward greater miniaturization, precision molding will remain an important manufacturing method for creating reliable, high-quality components at very small scales.
